CRYOGENIC – TRIPLE ECCENTRIC BUTTERFLY VALVES

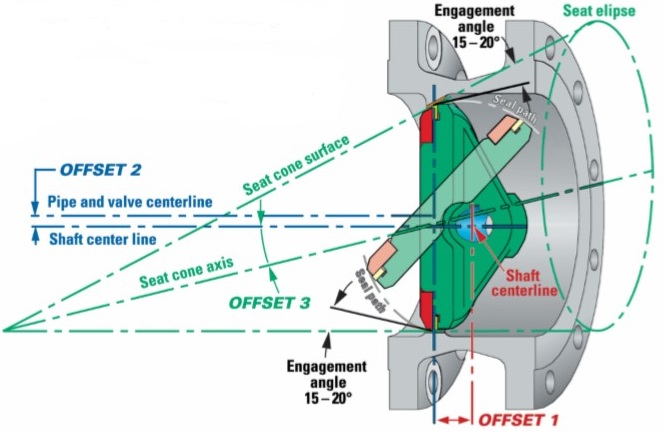

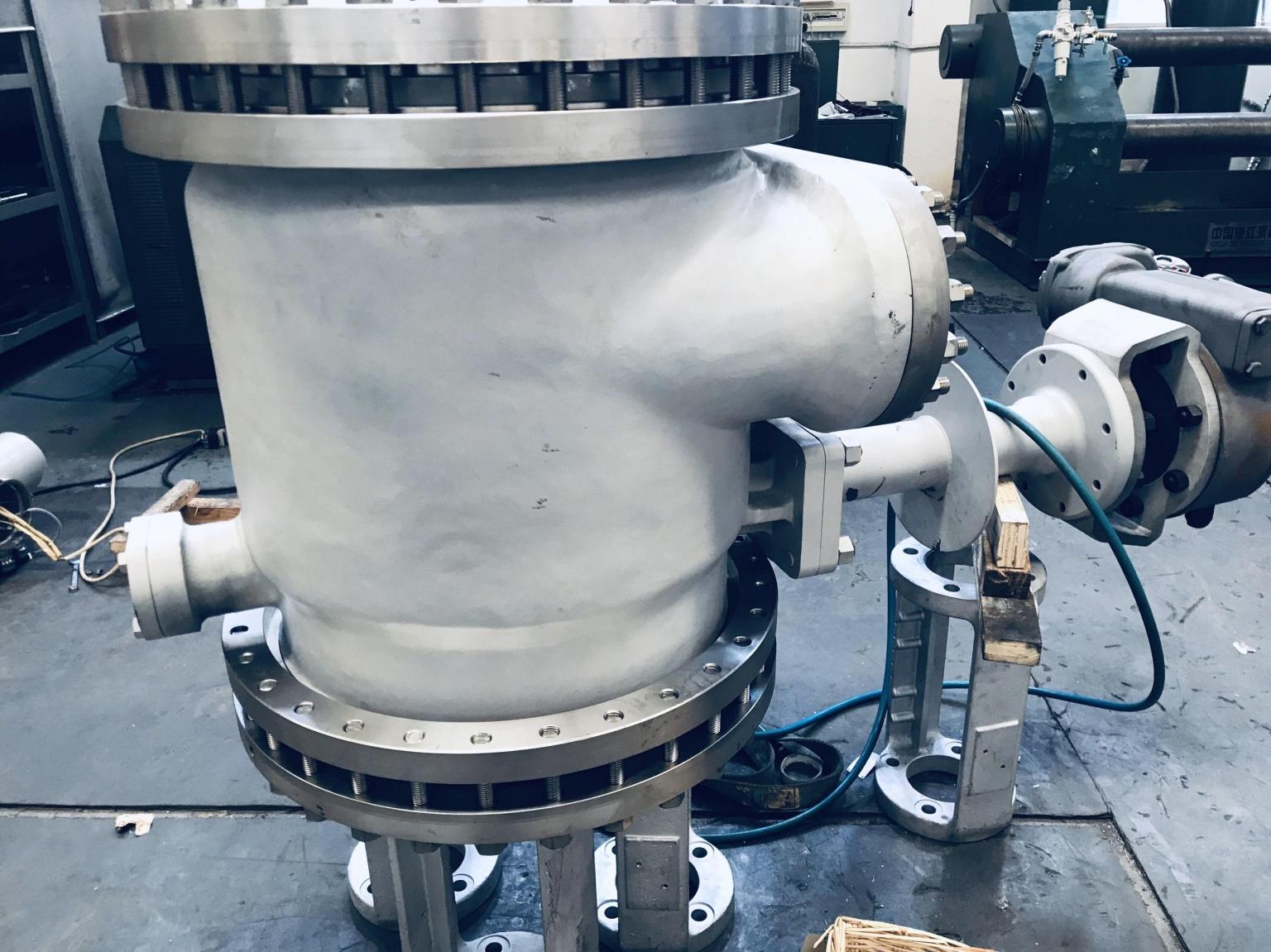

The Maverick butterfly valve for cryogenic service is designed for tight shut off and throttling service. The disc movement is Triple offset .This eliminates concentrated wear points on the sealing ring and extends it’s lifetime. Standard body patterns are flanged and butt welded types.

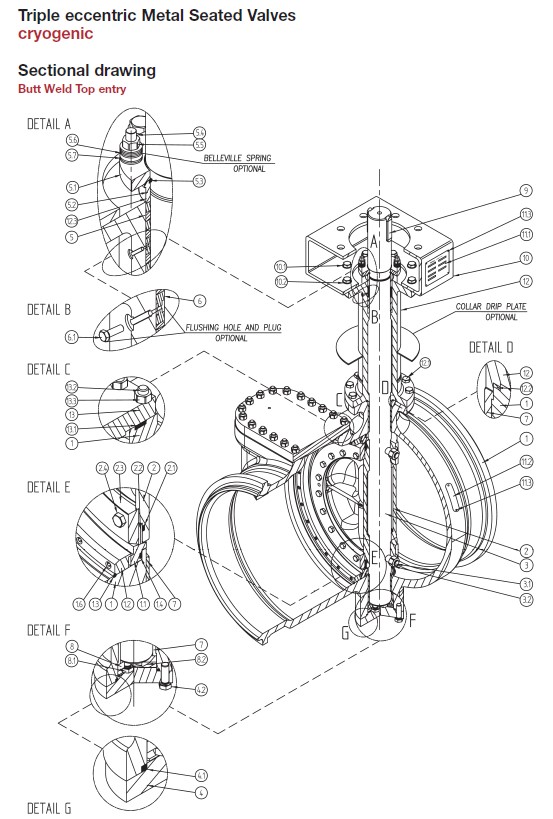

Butt welded type has extended body to prevent heat conduction to the sealing area during welding installation.

An inspection door on top of the body enables easy inspection, maintenance and replacement of inner parts without the need to remove the valve or to cut the pipe.

To prevent internal stress in the bonnet during the cool-down period, all bonnet joints are bolted. This bonnet is extended to ensure that the gland area remains free from freezing even for temperatures down to -196˚C.

The valve can be installed with the shaft in any direction. The topflange drilling is according to ISO 5211 standards to fit a large range of gears and actuators.

  • Sizes: 6″ up to 72″ (Design types: Side Entry and Double Flange)
  • Pressure: 150 LBS up to 600 LBS
  • Temperature: Down to -196ºC
  • Standards: API609, Cryogenic Service bonnet length as per BS6364 & MESC SPE 77/200, Fire Safe certificate as per API 607, Shell and Seat testing procedure as per API 598
  • Materials : CF3, CF3M, CF8, CF8C, CF8M, CK-3MCUN

Seals:

Seats:

  • Soft Seat in PCTFE material
  • Metallic Laminar Seat (Steel & Graphite)

Gaskets:

  • Spiral wound
  • Lip seals
  • Packing (Graphite, PTFE or as per client specifications)

Operator : Actuator, Gearbox

End connections: RF, BW

Industries and applications: Natural Gas Processing, Petrochemical, Chemical & Power

KEY FEATURES

  • DEVELOPED FOR USE IN LNG SYSTEMS
  • TRIPLE OR DOUBLE ECCENTRIC DESIGN TO REDUCE WEAR ON SEAT
  • BI-DIRECTIONAL AT FULL PRESSURE RATING
  • FREE ACCESS TO STUFFING BOX AND GLAND
  • BONNET EXTENSION
  • FIRE SAFE ACC. TO API 607
