NPS 2″ – 36″ , ASME Class 150 – 900

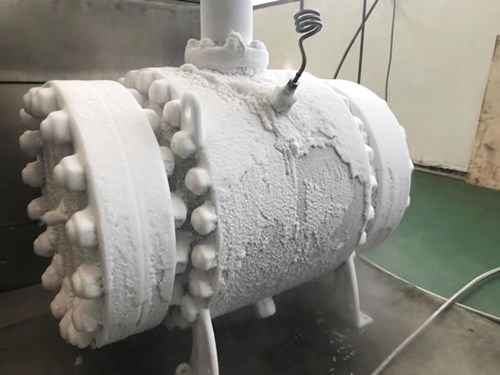

Our Cryogenic side-entry ball valves are manufacturerd for extremely low temperatures and cryogenic applications, where in-line disassembly is required for trim inspection and maintenance.
Our Valves are designed with an integral bonnet extension which prevents cryogenc liquids from reaching the stem packing by enabling the liquids to boil and convert to gas.
This minimizes the energy loss along the extension and protects the valve from malfunctioning.
The structural integrety of the valve reduces any thermal deformation of internal components caused by temperature variance to a minimum, ensuring the highest level of performance for tight shut-off in the most critical applications in LNG.
VALVE DESIGN
based on BS 6364, MESC 77/200, ISO 28921 (on request) and customer requirements
TEMPERATURE RANGE
-320 to 212°F (-196 to 120°C)
SIZE
NPS 2 -36 (DN 50-900)
PRESSURE RATING
ASME 150 – ASME 900
FACE-TO-FACE
As per API 6D standard
END CONNECTIONS
RF, RTJ as per B16.5 &B16.47
BW, Butt Welded as per B16.25
BODY DESIGN
Forged or cast one-piece
SEAT DESIGN
Soft or metal seated with hard facing on Ball and Seats
Seat design to avoid trapped fluid in body cavity
FEATURES
OPERATOR
TESTING & CERTIFICATIONS
