Choke Valves

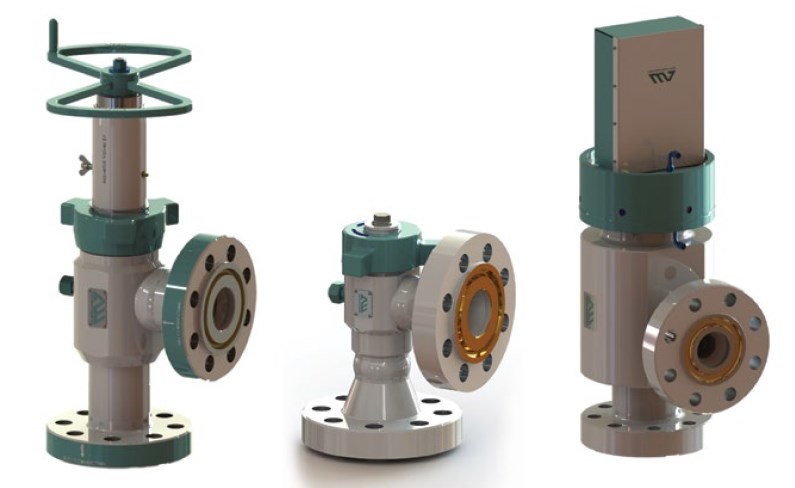

Maverick Valves Adjustable choke & Positive choke valves are often used in the oilfield when drilling,testing,production our adjustable choke valve is designed and manufactured in accordance with API 6A and API 16C standard and improved from customer feedback. They are easy for operation and simple to maintain

FEATURES

• Manufactured and tested in accordance with API 6A.
• Flow adjustment is indicated on a measuring scale.
• Maximized valve service life.
• Carbide alloy is embedded into stem needle of valve, seat.
• The stem packing is a re-energize while the valve in under pressure.
• Critical application from 2000 psi to 15000 psi pressure.

Size:
Top Flange Size : 2-1/16” to 4-1/16” standard through bore size.
Pressure rating : 2000 PSI to 15000PSI
Maximum Orifice: 1,2,3, (inch)
End connection : Flanged , Union , Threaded, Weldneck

Manufacturing Standards:
API-6A, PSL-3,EE-L-U-PR2
NACE MR-01-75 / ISO15156
