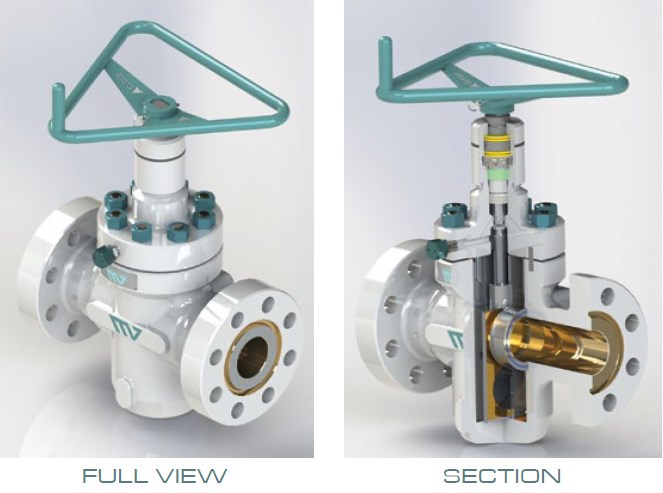

MVTFC-01 TYPE GATE VALVES (PRODUCTION)

Maverick Valves Gate Valves designed in accordance to API 6A and NACE MR-01-75, ‘MVTFC’ type is a field-proven valve which provides reliability and interchangeability, bi-directional sealing and a non-rising stem making it ideally suited for drilling Manifolds, X-mas trees and severe service, one piece gate helps to prevent line sediment from entering the body cavity and prevents pressure locks when the upstream pressure drops, Easily equipped with Hydraulic Actuators for Manifold or Subsea service.

FEATURES

  • Forged Body and Bonnet.
  • Low operation torque under pressure.
  • Metal to metal sealing gate-to-seat and the seat-to-body.
  • Maximized valve service life.
  • Bi-directional MVTLS-B style slab gate valve for high pressure
  • Flanged, studded, weldneck, threaded outlet are available.
  • The stem packing is a re-energize while the valve in under pressure.
  • Critical application from 2000 psi to 15000 psi pressure.

Size:
Top Flange Size: 1-13/16” to 7-1/16” standard through bore size.
Pressure rating : 2000 PSI to 15000 PSI

Manufacturing Standards:
API-6A, PSL-3,EE-L-U-PR1
NACE MR-01-75 / ISO15156
