Subsea Ball Valves

Reliable and Versatile Solutions for Harsh Environments

Maverick Valves Manufacturing specializes in subsea side-entry ball valves designed to excel in challenging underwater conditions. Our valves are engineered to operate effectively at water depths of up to 3000 m (10,000 ft) and boast an impressive average service life of 25 years. With a focus on reliability, safety, and durability, our subsea ball valves offer exceptional performance even under high-pressure conditions and in harsh environments with sand or solid particles.

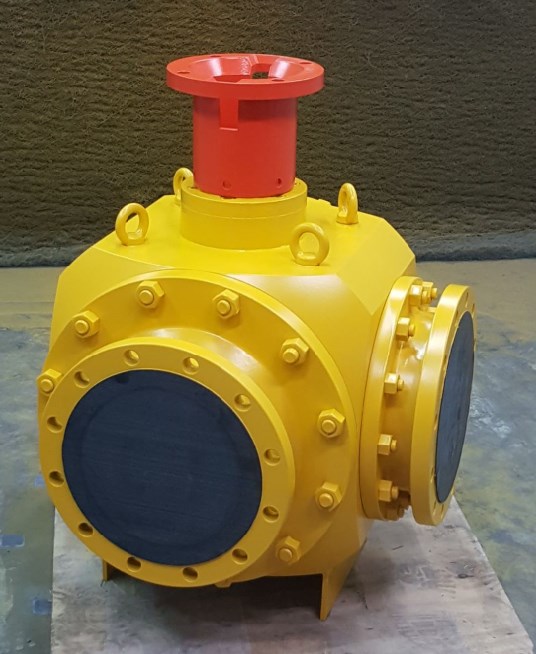

Our subsea side-entry ball valves can be equipped with a subsea gear and ROV receptacle, enabling remote operation by a remotely operated vehicle (ROV). Alternatively, they can be configured with a handwheel for manual operation by a diver. To enhance functionality, valves can also be fitted with hydraulic subsea actuators, providing precise control in a double or single acting configuration. Additionally, some models offer the option for ROV override.

We understand that every application has unique requirements. That’s why our subsea ball valves are available in a wide range of materials and configurations, ensuring compatibility with various customer specifications and specific application needs. We prioritize customization to deliver the most effective solution for your subsea operations.

Choose Maverick Valves Manufacturing for reliable and versatile subsea ball valves. With our advanced engineering and commitment to quality, we provide solutions that meet the demanding standards of underwater environments. Trust us for exceptional performance, longevity, and peace of mind in your subsea operations.

• Product range / Specifications :

• Valves are in accordance with API 6DSS .
• Generally fully welded valves, to prevent possible water passing through valve body.
• Suitable for 3.000 m water depth installation (10.000 feet).
• Offered with materials suitable for subsea environment.
• Available also with Double block and bleed, modular type design.

Design features

• Double block and bleed design (DBB).
• Anti-statie device.
• Anti-blowout stem.
• Soft-seated or metal-seated designs with hardfacing on ball and seats.
• Seat configurations available: self-relieving, double piston, and combination seats.
• O-ring/lip seal configuration.
• Body sealing designed in double O-ring configuration for sea water protection.
• CRA overlay on all dynamic sealing areas or on all wetted parts available.

Operator

• Manual: Gear with ROV receptacle or handwheel.
• Actuated: Hydraulic with or without ROV receptacle/ handwheel override.
• Baric compensator for operators.

Testing & certification

• Compliance with API 6D5S inspection and testing.
• SIL 3 Certification as per IEC 61 508.
• PED 2014/68/UE.
• Hyperbaric validation testing as per API 6DSS (available on request).
• Cap test as per API 6DSS (available on request).
