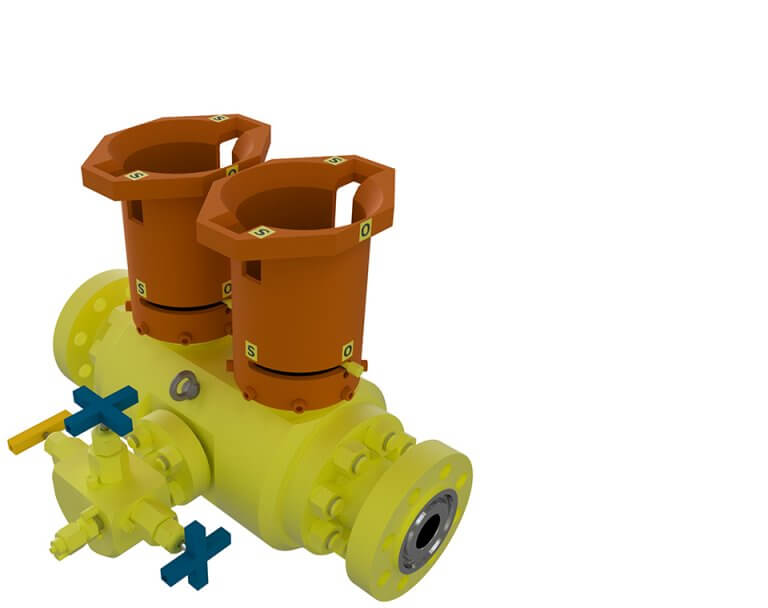

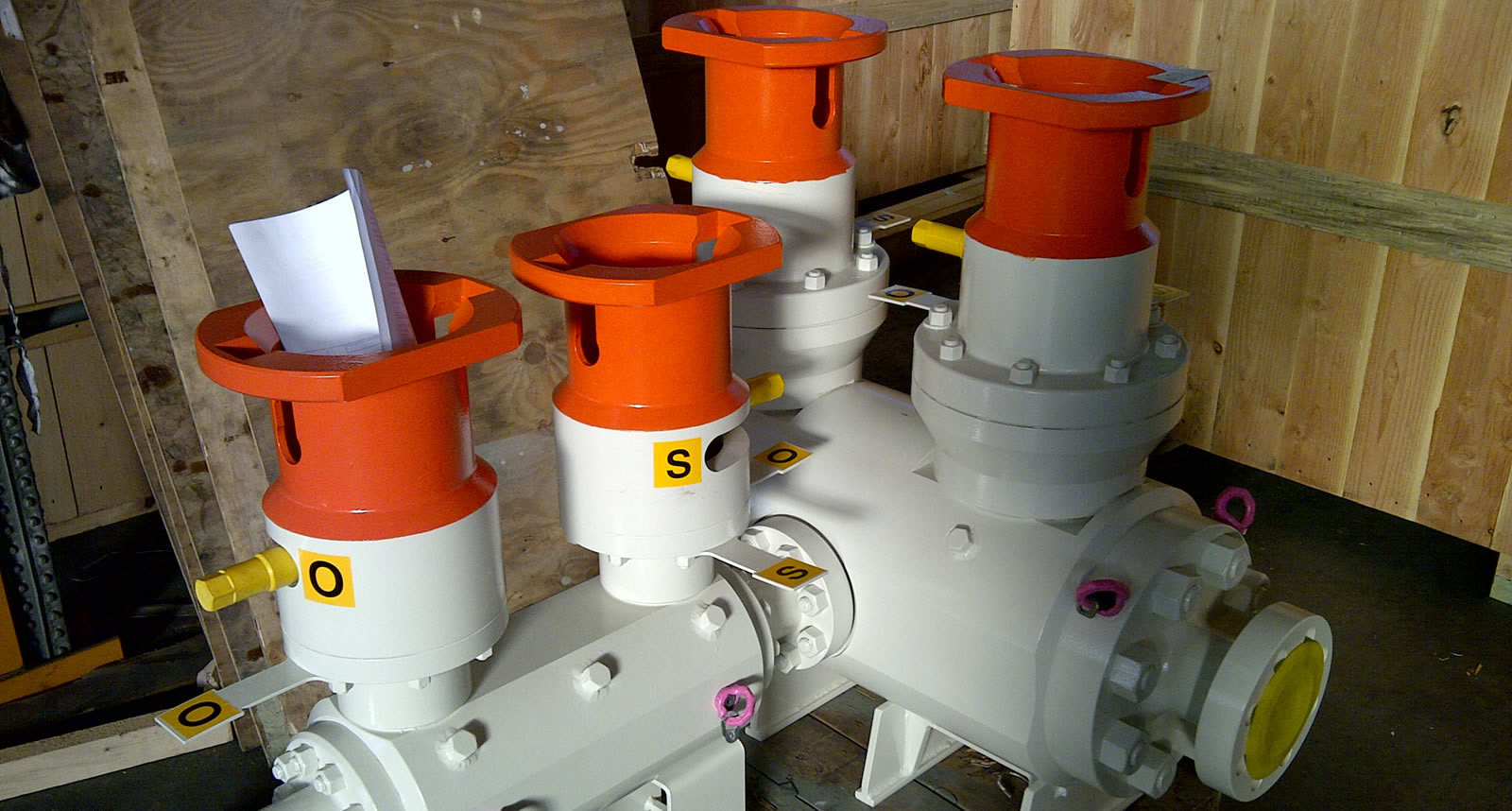

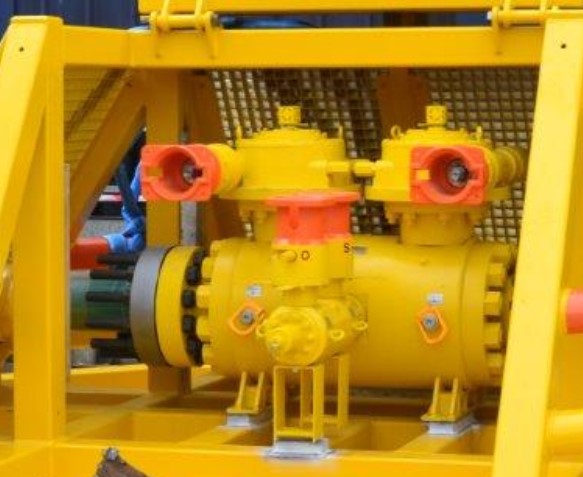

Using the same technology from our Single Isolation Ball Valves, we can supply units with double block or double block & bleed functionality. All units can be fitted to a single valve body, providing a compact, lower weight solution. Available in sizes from 3/8” up to 16”, and pressures up to 15,000psi
Our subsea valves are suitable in water depths to 3.000 m (10.000 ft) and maintain an average service life of 25 years while offering the utmost level of reliability and safety under high-pressure conditions-even in harsh service with the presence of sand or solid particles.
Valves are available in a wide range of materials and configurations to meet both customer requirements and specific application needs.
Specifications
Valve design : As per API 6DSS standard and customer requirements
Temperature range : -150 so to 428°F (-101 to 220°C)
Face-to-face : As per API 60 standard
End connections : RF, RTJ as per B16.5 & B16.47 BW, Butt weid as per B16.25 Hub connection
Product Features
Metal or soft seated options available
Spring energised seats
Floating and Trunnion options available
Dual Stem seal arrangement
Anti-blow-out Stem
Suitable for manual, ROV or actuator operation
Design Benefits
Compact, lighter solution for dual isolation
Bi-directional sealing
Compact design
No lubrication or maintenance required
Easily configured to suit various end connections
PEEK/PTFE soft seals to suit a wide range of process media
Rate A (zero) leakage options available
Design features
Double block and bleed design (DBB).
Anti-statie device.
Anti-blowout stem.
Soft-seated or metal-seated designs with hardfacingon ball and seats.
Seat configurations available: self-relieving, double piston, and combination seats.
O-ring/lip seal configuration.
Body sealing designed in double O-ring configuration for sea water protection.
CRA overlay on all dynamic sealing areas or on all wetted parts available.
Operator
Manual: Gear with ROV receptacle or handwheel.
Actuated: Hydraulic with or without ROV receptacle/ handwheel override.
Baric compensator for operators.
Testing & certification
Compliance with API 6DSS inspection and testing.
SIL 3 Certification as per IEC 61 508.
PED 2014/68/UE.
Hyperbaric validation testing as per API 6DSS (available on request).
